BL8028
貝嶺
19+

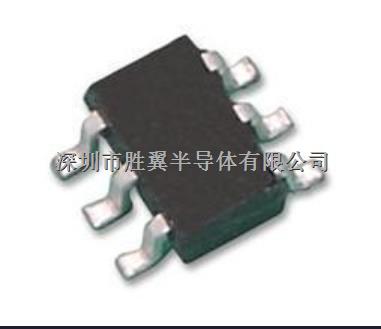

SOT23-6
5000多家會員為您找貨報價,SO EASY!
The BL8028 is a high-efficiency, DC-to-DC step-down switching regulators,capable of delivering up to 1.5A of output current. The device operates from an input voltage range of 2.6V to 6V and provides an output voltage from 0.6V to VIN, making the BL8028 ideal for low voltage power conversions.Running at a fixed frequency of 2MHz allows the use of small external components, such as ceramic input and output caps, as well as small inductors,while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier,making BL8028 an ideal green replacement for large power consuming linear regulators. Internal soft-start control circuitry reduces inrush current.Short-circuit and thermal-overload protection improves design reliability.
The BL8028 is available in SOT23-5 and the tiny DFN2*2-6 packages.
應用領域:
便攜式電話
數碼相機
MP3和MP4播放器
機頂盒
無線和DSL調制解調器
筆記本電腦中的USB設備
便攜式設備
BL8078:高壓LDO40V輸入150mA,完全兼容SGM2202,且IQ只有2.5uA,比2202低;
BL9161:低壓通用LDO6V輸入300mA,SOT23-5、SC70-5、DFN1*1-4,可完全替換9198/9193/8563
BL8310MD:馬達驅動,可以兼容DRV8837、PT2466、SY6702。目標應用:比如單節鋰電池(或4節干電池)供電的,如共享單車鎖、水氣表馬達驅動、部分電子鎖應用是可以完全替代的,性價比高。
BL1556:雙路SPDT模擬開關,2.7ohm,300MHz。
BL8028:低壓6V,1.5A,2MHz,SOT23-5/B、DFN2*2-6。P2PSY8088
BL8032:中壓18V,2A,500KHz,SOT23-6,P2P:MP1470
BL8033:中壓18V,3A,500KHz,SOT23-6,P2P:MP1471
BL8032B:中壓16V,2A,500KHz,SOP8,P2PMP1482BL8034:中壓16V,4A,500KHz,ESOP8,P2PMP1484
BL9352A:高壓45V,600mA,1.6MHz,SOT23-6,P2PMP2451
BL8032S:中壓16V,2A,500KHz,SOT23-6,P2P:SY8120
BL8531C:升壓DCDC,SOT89-5/23/25,外掛MOS,Vin0.8-5.5V,400KHz
BL8542CCB5TR:同步升壓DCDC,SOT25,同步升壓,Vin0.7V+,1MHz,500mA
BL8536:SOT89/SOT23-3,同步,Vout=1.8~3.6V固定輸出
BL8506:低電壓檢測,Vin0.7-10V,VDET0.9-6V,SOT23/89/25P2PR3111/MAX808
BL8518:復位IC,Vin1-6V,VDET1.6-5V,SOT23/25P2PR3110/MAX809
以上產品價格均為參考價格,具體價格來電咨詢會詳細報價
