LT9211C 國產原裝現貨 適用于移動系統 移動電話數碼相機數碼攝像機平板電腦筆記本電腦 汽車顯示攝像系統描述

描述

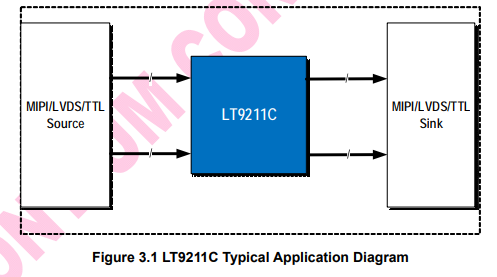

Lontium LT9211C是一種高性能轉換器，可以在MIPI DSI/CSI-2/雙端口LVDS和TTL之間相互轉換，除了24位TTL到同步和DE的24位TTL，并且不推薦在2端口10位LVDS和同步和DE的24位TTL之間進行轉換。LT9211C對輸入的MIPI/LVDS/TTL視頻數據進行反序列化，解碼數據包，并將格式化的視頻數據流在AP和移動顯示面板或攝像機之間轉換為MIPI/LVDS/TTL發射機輸出。
LT9211C可作為2端口MIPI/LVDS中繼器，支持最大14dB輸入均衡和可編程預強調，以提高性能。
LT9211C也可以用作MIPI/LVDS的分割器和分割器。對于MIPI中繼器，Muxer和Splitter，我們也支持CSI RAW格式的連續時鐘。
除TTL輸入和輸出外，VCCIO可以為1.8V，當TTL輸入時，VCCIO電壓必須大于TTL輸入高壓電平，TTL輸出電壓電平即為VCCIO。
LT9211C采用先進的CMOS工藝制造，采用7.5x7.5mm QFN64封裝。該包符合RoHS標準，并指定在-40°C至+85°C范圍內運行。
應用程序
移動系統
移動電話
數碼相機
數碼攝像機
平板電腦、筆記本電腦
汽車顯示和攝像系統
Description
The Lontium LT9211C is a high performance convertor whICh interconvertible between MIPI DSI/CSI-2/Dual-Port LVDS and TTL except for 24bit TTL to 24bit TTL with both SYNC and DE, and the conversion between 2-port 10-bit LVDS and 24bit TTL with both SYNC and DE is not recommended. The LT9211C deserializes input MIPI/LVDS/TTL video data, decodes packets, and converts the formatted video data stream to MIPI/LVDS/TTL transmitter output between AP and mobile display panel or camera.
The LT9211C can be used as 2-Port MIPI/LVDS Repeater which support maximum 14dB input equalization and programmable pre-emphasis to improve performance.
The LT9211C can also be used as MIPI/LVDS Muxer and Splitter. For MIPI Repeater, Muxer and Splitter, we also support CSI RAW format with continuous clock.
Except TTL input and output, the VCCIO could be 1.8V, when TTL input, the VCCIO voltage must be greater than the TTL input high voltage level, and the TTL output voltage level is the VCCIO.
The LT9211C is fabricated in advanced CMOS process and implemented in 7.5x7.5mm QFN64 package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
Applications
Mobile systems
Cellular handsets
Digital still cameras
Digital  video cameras
Tablet PC, Notebook PC
Car Display and Camera System
我公司可提供全套開發資料：規格書，電路圖，DEMO,在線與原廠技術支持溝通推薦更適合客戶的解決方案等等，能滿足系統廠商不同的設計要求，歡迎廣大客戶來電咨詢，可提供樣品和含稅13%！代理產品，每一片芯片都有原廠來貨證明，杜絕一切假貨后顧之憂，讓您的用料更加放心可靠！
如需獲取更多產品資料PDF,電路圖或樣品，技術疑問（原廠技術支持）歡迎隨時與我們?nèi)〉寐?lián)系！！
深圳市九黎科技有限公司：www.jlkj688.com
聯系電話：18123893637(微信同號)
聯系人：葉小姐   傳真：0755-82737072    QQ:3996435267 郵箱：even.jl@foxmail.com
Our company can provide a complete set of development materials, including specifications, circuit diagrams, demos, and online communication with original technical support to recommend more suitable solutions for customers. We can meet the different design requirements of system manufacturers. We welcome customers to call us for consultation, and we can provide samples and 13% tax included! Proxy products, each chip comes with an original factory delivery certificate, eliminating all worries about counterfeit products and making your materials more reliable and reliable!
If you need to obtain more product information PDFs, circuit diagrams or samples, technical questions (original factory technical support), please feel free to contact us at any time!!
Shenzhen Jiuli Technology Co., Ltd.: www.jlkj688.com
Contact number: 18123893637 (same WeChat account)
Contact person: Miss Ye Fax: 0755-82737072 QQ: 3996435267 Email: even.jl@foxmail.com
