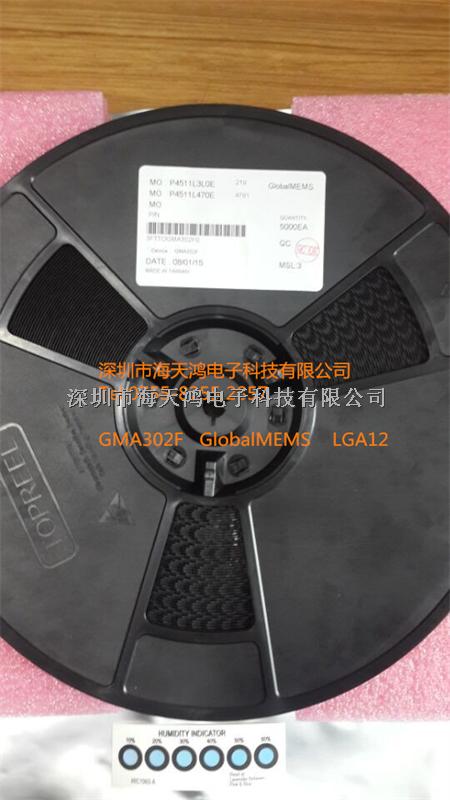

GMA302F ±16g Tri-Axial Digital Accelerometer General Introduction GMA302F is a tri-axial digital accelerometer with ±16g dynamIC range and 13-bit ADC resolution. It integrates a MEMS sensing element and a CMOS conditioning IC in a compact 3×3×1 mm 3 package. The high resolution makes feasible preciseapplications like e-Compass tilt compensation. The wide sensing range further opens enough windows for motion detection. Finally the small form factor makes it an easy fit-in for compact applications like wearables. Features
Tri-axial digital accelerometer with ±16g dynamic range
13 bit ADC resolution with sensitivity 256 LSB/g
Digital I2C interface supporting both fast mode (400kHz) and normal mode (100kHz)
Temperature sensor for internal compensation and capable of digital output
Operation voltage: +2.5V ~ +3.6V; IO interface voltage: +1.8V ~ +3.6V
Power consumption:  Continuous mode (CM): typical 250uA for 128Hz ODR  Non-Continuous mode (NCM): typical 90uA to 100uA for 1~8Hz ODR  Suspend current < 1uA
One interrupt pin with selectable polarity and push-pull/open-drain option
Built-in functions:  Data-ready interrupt  4-tap moving average filter with high-/low-pass option
5000g shock tolerance
10-pin QFN lead-free package. Footprint: 3mm × 3mm, height: 1mm.
RoHS compliance Applications Smart user interface, e-compass tilt-compensation, motion detection and analysis 1 2 3 4 5 10 9 8 7 6 5 1 2 3 4 DVSS DVDD NC SCL SDA INT Reserved NC 6 10 9 8 7 AVSS AVDD NC NC A2A XXX Bottom View Top View
