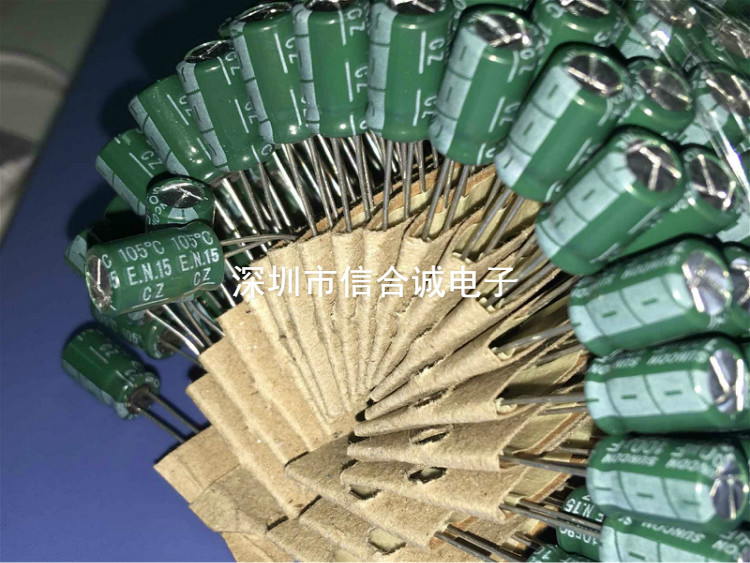

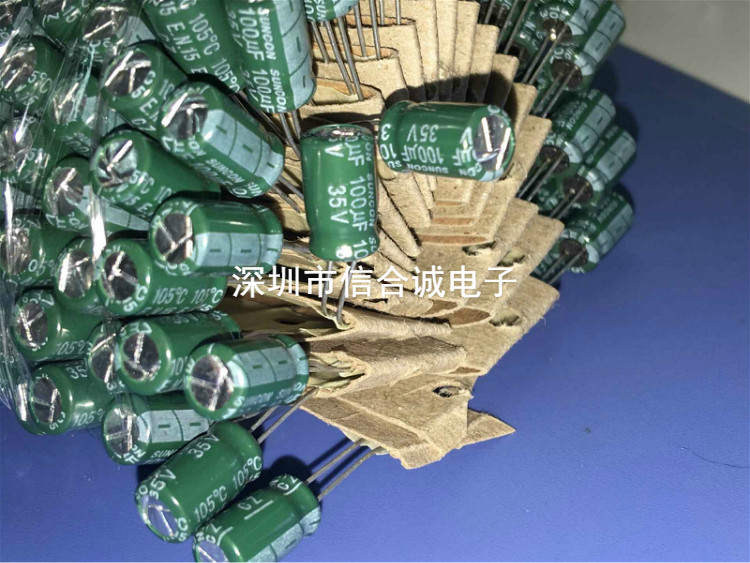

項目ltem

特性Performance Characteristics

適用溫度範圍

Operating Temperature Range

-40to+105℃

-25to+105℃

工作電壓範圍

Rated Voltage Range

6.3to100VDC

160to450VDC

靜電容量誤差

Capacitance Range

0.1to4700μF

0.47to220μF

電容量允差

Capacitance   Tolerance

±20%（100Hz or 120Hz，+20℃）

洩漏電流

Leakage   Current

（+20℃，最大max）

I≤0.01CV或5（μA）額定工作電壓充電1分鐘後讀數，取大者 I≤0.01CV or   5(μA)

After1minutes,whichever   is greater measured with rated working voltage applied

I≤0.03CV+10（μA）額定工作電壓充電1分鐘後讀數，取大者 I≤0.03CV+10(μA)

After1minutes,whichever   is greater measured with rated working voltage applied

散逸因素 (tan δ)

Dissipation   Factor（tgδ）

工作電壓WorkingVoltabe(VDC)6.3101625355063100160200250350400450D.F(%)最大2220181414121210141414151517

容量>1000μF時 ，每增加1000μF D.F值增加2%( 100Hz or 120Hz，+20℃)

For capacitance1000μF,Add 2%per another 1000μF (100Hz or 120Hz，+20℃)

低溫特性

Low   Temperature

Characteristics

（120Hz）

阻抗比，最大Impedance ratio ,max

工作電壓Working Voltage(VDC)6.3101625355063100160200250350400450Z - 25℃ / Z+20 ℃432222222235615Z - 40℃ / Z+20 ℃86433333------

容量>1000μF時 ，每增加1000μF ，Z - 25℃   / Z+20 ℃值增加0.5%, Z - 40℃   / Z+20 ℃值增加1% Fpr capacitance>1000μF , and 0.5% per   another 1000μF for Z-25℃/Z+20℃,   add 1% per another 1000μF for Z-40℃/Z+20℃

負荷壽命Load Life

試驗條件

Test conditions

持續時間:8000~12000小時

Duration time: 2000hours

環境溫度:+105℃

Ambient timperature: +105℃

施加電壓:額定工作電壓(VDC)

Applied voltage: Rated Working Voltage(DVC)

施加額定紋波電流

Applied voltage: Rated Working Voltage(mA)

試驗後要求:室溫下恢復16小時,+20℃測試

After test requirements: Resumde 16 hours at

normal temperature

電容量變化:≤20%規定值

Capacitance change:≤20% of the initial measured value

損耗角正切值:≤200%初始值

Dissipation Factor:≤200% of the initial specified value

漏電流:≤規定值

Leakage Current:≤The initial specified value

放置壽命Shelf Life

試驗條件

Test   conditions

持續時間:1000小時

Duration   time: 500hours

環境溫度:+105℃

Ambient   temperature:+105℃

施加電壓:無

Applied   voltage: None

試驗後要求:室溫下恢復16小時,+20℃測試

After test   requirements: Resumed 16 hours at

normal   timperature

電容量變化:≤20%規定值

Capacitance change:≤20% of the initial measured value

損耗角正切值:≤200%初始值                                                                                    Dissipation

Dissipation Factor:≤200% of the initial specified value

試驗條件漏電流:≤200%規定值

Leakage Current:≤200% of the initial specified value

容量（μF）/ Hz

60(50)

120

400

1K

10K

50K~100K

溫度℃

45

60

70

85

105

系數

≤10

0.8

1

1.30

1.30

1.65

1.70

系數

2.10

1.90

1.40

1.25

1.00

10~100

0.8

1

1.23

1.23

1.48

1.53

100~1000

0.8

1

1.16

1.16

1.35

1.38

>1000

0.8

1

1.11

1.11

1.25

1.28

DФ

5

6.3

8

10

13

16

18

22

F

2

2.5

3.5

5.0

5.0

7.5

7.5

10

dФ

 0.5

0.6

0.8
